與傳統(tǒng)的鐵氧體軟磁材料相比，納米晶軟磁合金材料具有高飽和磁感（≥1.2T），低損耗，低矯頑力，低磁致伸縮，磁導率可調范圍寬（400-900,000），良好的溫度穩(wěn)定性，是高頻電力電子應用理想的選擇。

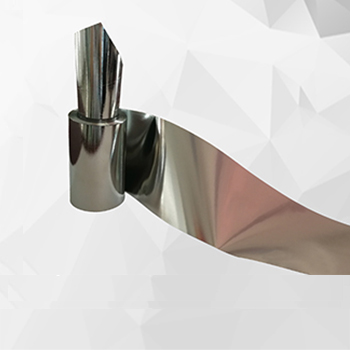

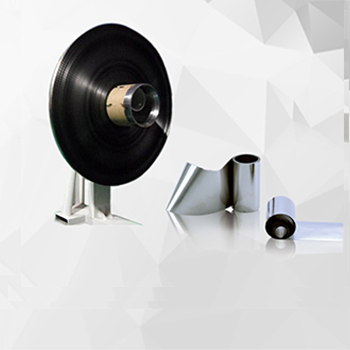

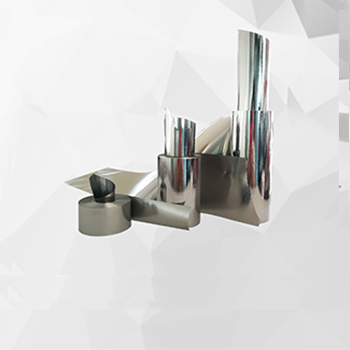

高精度納米晶帶材主要用于制作高端共模電感、高頻功率變壓器、精密電流互感器，磁放大器和屏蔽片等產品。
| 產品牌號 | 有效厚度 |
堆積 系數 |
飽和通量密度 | 矯頑力 | 案例 | ||||||||||||
| 高頻電力變壓器（HFPT） | 共模扼流圈 (CMC) | 電流互感器(CT) | 無線電力傳輸(WPT) | ||||||||||||||
| t [μm] | % | Bs[T] | Hc[A/m] | Select | Pcm [W/kg] ?(20kHz,0.5T) |
μ0.08 | Select | Pcm [W/kg] (100kHz,0.3T) |
μ (10kHz) |
μ (100kHz) |
Select | μi (50Hz) | μm (50Hz) | Select | Pcm [W/kg] (100kHz,0.3T) |
μ (100kHz) |
|
| 1K107B | 23-26 | 78-84 | 1.24 | ≤1.5 | √ | ≤20 | 30,000~60,000 | \ | \ | \ | \ | √ | ?85,000 | ?500,000 | \ | \ | \ |
| 20-23 | 78-84 | √ | ≤15 | 30,000~60,000 | √ | ≤80? | ?80,000 | ?15,000 | √ | ?80,000 | ?500,000 | \ | \ | \ | |||
| 17-20 | 75-82 | √ | ≤12 | 30,000~60,000 | √ | ≤70 | ?75,000 | ?25,000 | \ | \ | \ | \ | \ | \ | |||
| 14-17 | 75-82 | \ | \ | \ | √ | ≤60? | ?70,000 | ?30,000 | \ | \ | \ | \ | \ | \ | |||
| 1K107BW | 22-28 | 78-84 | 1.24 | ≤1.5 | √ | ≤15 | \ | √ | ≤85? | ?80,000 | ?15,000 | √ | ?140,000 | ?500,000 | \ | \ | \ |
| 1K107E | 18-22 | 78-84 | 1.24 | ≤1.5 | \ | \ | \ | \ | \ | \ | \ | √ | ?150,000 | ?500,000 | \ | \ | \ |
| 1K107O | 22-28 | 78-84 | 1.24 | ≤1.5 | \ | \ | \ | \ | \ | \ | \ | √ | ?140,000 | ?900,000 | \ | \ | \ |
| 1K107W | 14-26 | 75-84 | 1.24 | ≤1.5 | \ | \ | \ | \ | \ | \ | \ | √ | \ | \ | √ | ≤80 | ≥12,000 |
| 1K107H | 18-26 | 78-84 | 1.40 | ≤2.5 | \ | \ | \ | \ | \ | \ | \ | \ | \ | \ | √ | ≤110 | ≥14,000 |
| FN-200 | 20-23 17-20 |
78-84 | 1.25 | ≤2.0 | \ | \ | \ | √ | ≤90 | ?20,000 | ?12,000 | \ | \ | \ | \ | \ | \ |
| FN-100 | 78-84 | ≤2.5 | \ | \ | \ | √ | ≤90 | ?8,500 | ?7,500 | \ | \ | \ | \ | \ | \ | ||
| FN-080 | 78-84 | ≤2.5 | \ | \ | \ | √ | ≤90? | ?5,500 | ?5,000 | \ | \ | \ | \ | \ | \ | ||
| FN-035 | 78-84 | ≤3.0 | \ | \ | \ | √ | ≤90 | ?4,500 | ?4,500 | \ | \ | \ | \ | \ | \ | ||
